Aluminum ELM327 USB V1.5

Aluminum ELM327 USB V1.5 Highlights:

1. Hardware Version: V1.5
2. Software Version: V2.1
3. Aluminum Metal Shell
4. USB Connection

Aluminum ELM327 USB V1.5 Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...





Aluminum ELM327 USB V1.5 Specifications:
Processor: ELM327 USB
OBD-II Protocols: ISO15765-4 (CAN)
ISO14230-4 (KWP2000)
ISO9141-2
J1850 VPW
J1850 PWM
Output protocol: RS232
Baud rate: 9600 or 38400
Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45 mA





Aluminum ELM327 USB V1.5 Software:
1.Mode 22 Scan Tool by Terry
2.OBD Gauge for PalmOS and Pocket PC by Dana Peters
3.OBD Logger by Jonathan Senkerik
4.OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
5.OBD2 Scantool by Ivan Andrewjeski
6.OBDII for ELM322 by David Huffman
7.pyOBD by Donour Sizemore for MacOSX and Linux
8.RDDTC by Pete Calinski
9.Real Scan by Brent Harris
10.ScanTest for Pocket PC by Ivan Ganev aka a-ser
11.wOBD by WDT

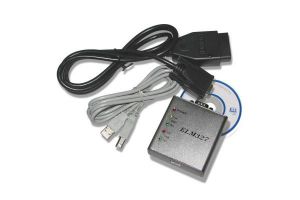

Aluminum ELM327 USB V1.5 Package list:
1.Elm327 main unit
2.One com interface
3.One USB cables
4.One CD software
